Update a tool

Updating an existing container is quite easy with the new build system.

Here is a step-by-step on how to proceed by modifying the .yaml file. It is also possible to edit the containers by using our newly released web browser UI: https://neurodesk.org/neurocontainers-ui/.

There’s a detailed version below including screenshots and an example.

---

Condensed version

1. Access the Neurodesk Containers repository.

2. Fork the repository.

3. Using your preferred development environment (such as VS Code locally or GitHub Codespaces), make changes to the desired container.

   Each tool has its own folder inside the recipes/ directory, and inside that folder, you will find the corresponding build.yaml file.

   Editing the build.yaml

   Open the build.yaml file. Make the necessary updates to:

   • Software version numbers
   • Dependencies
   • Download links
   • Build instructions (if needed)

4. Validate your changes.

   Make sure your changes are valid. In the terminal, run:

   ./builder/build.py generate <toolname>

   #This second step can take some time
   ./builder/build.py generate <toolname> --recreate --build --test

5. Commit and push your changes.

6. Create a pull request.

---

Detailed version

1. Access the Neurodesk Containers

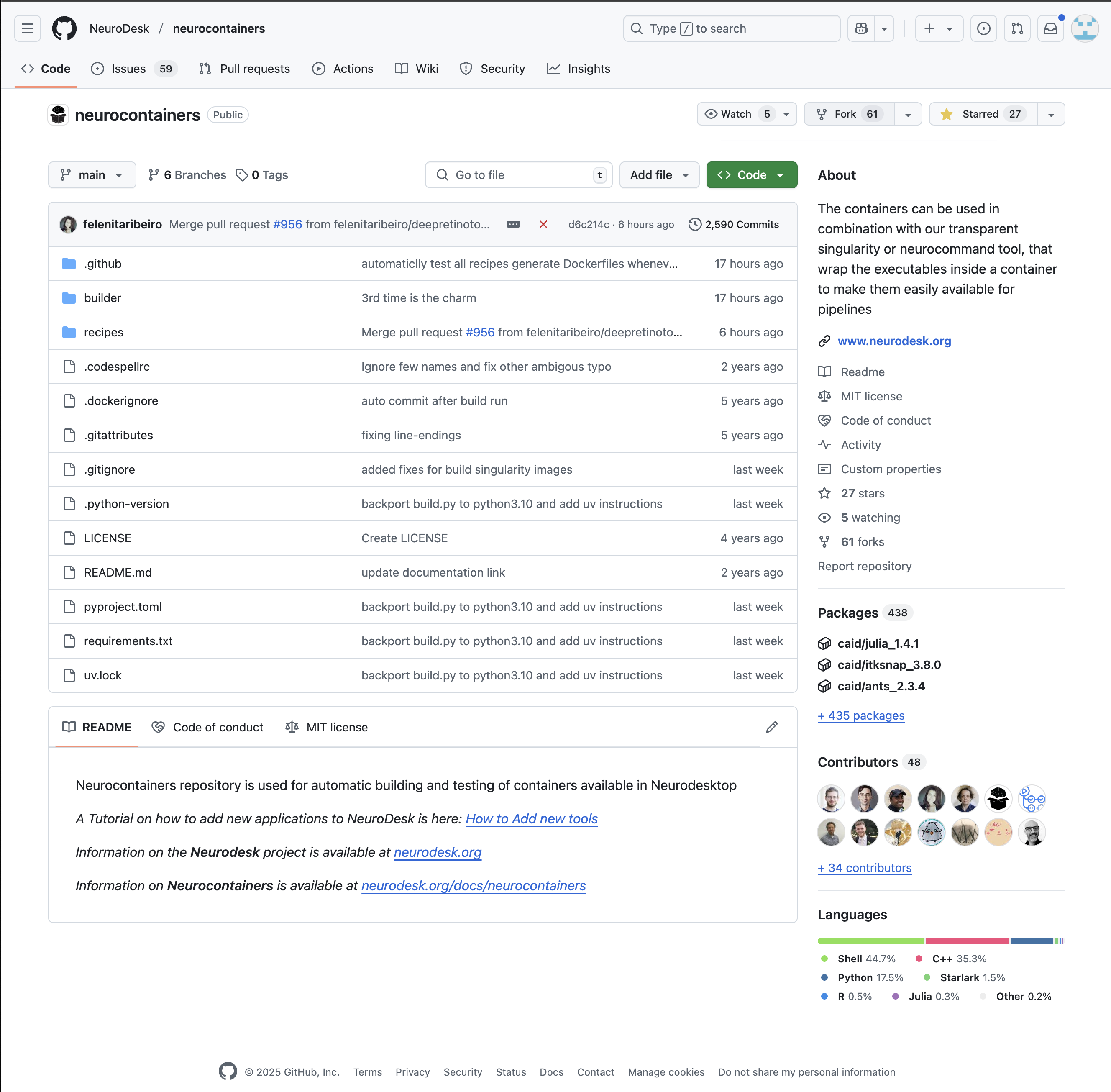

Navigate to the Neurocontainers repository:

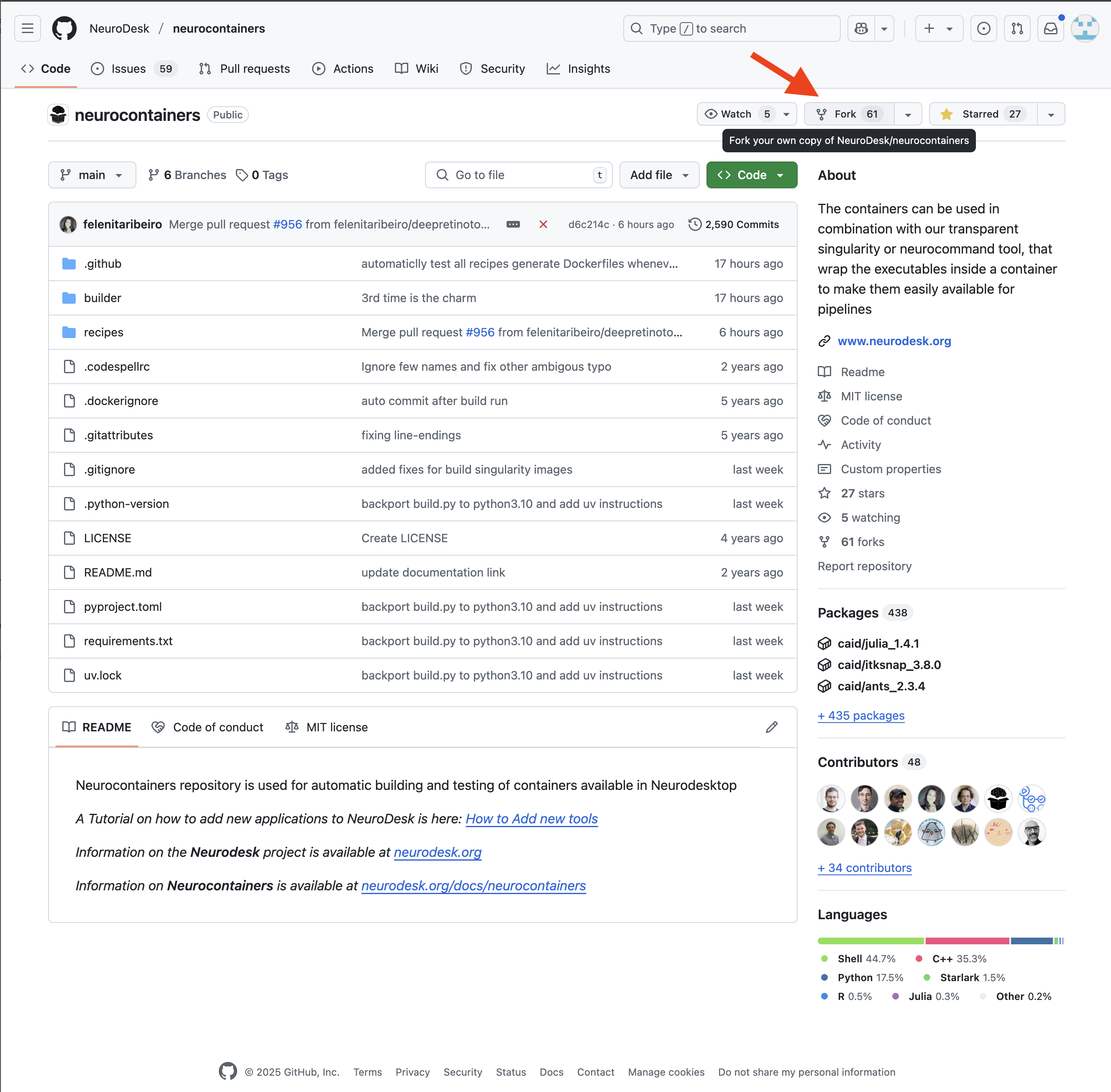

2. Fork the repository

You will then need to fork the Neurodesk repository to your own repositories. This allows you to make changes independently and propose updates.

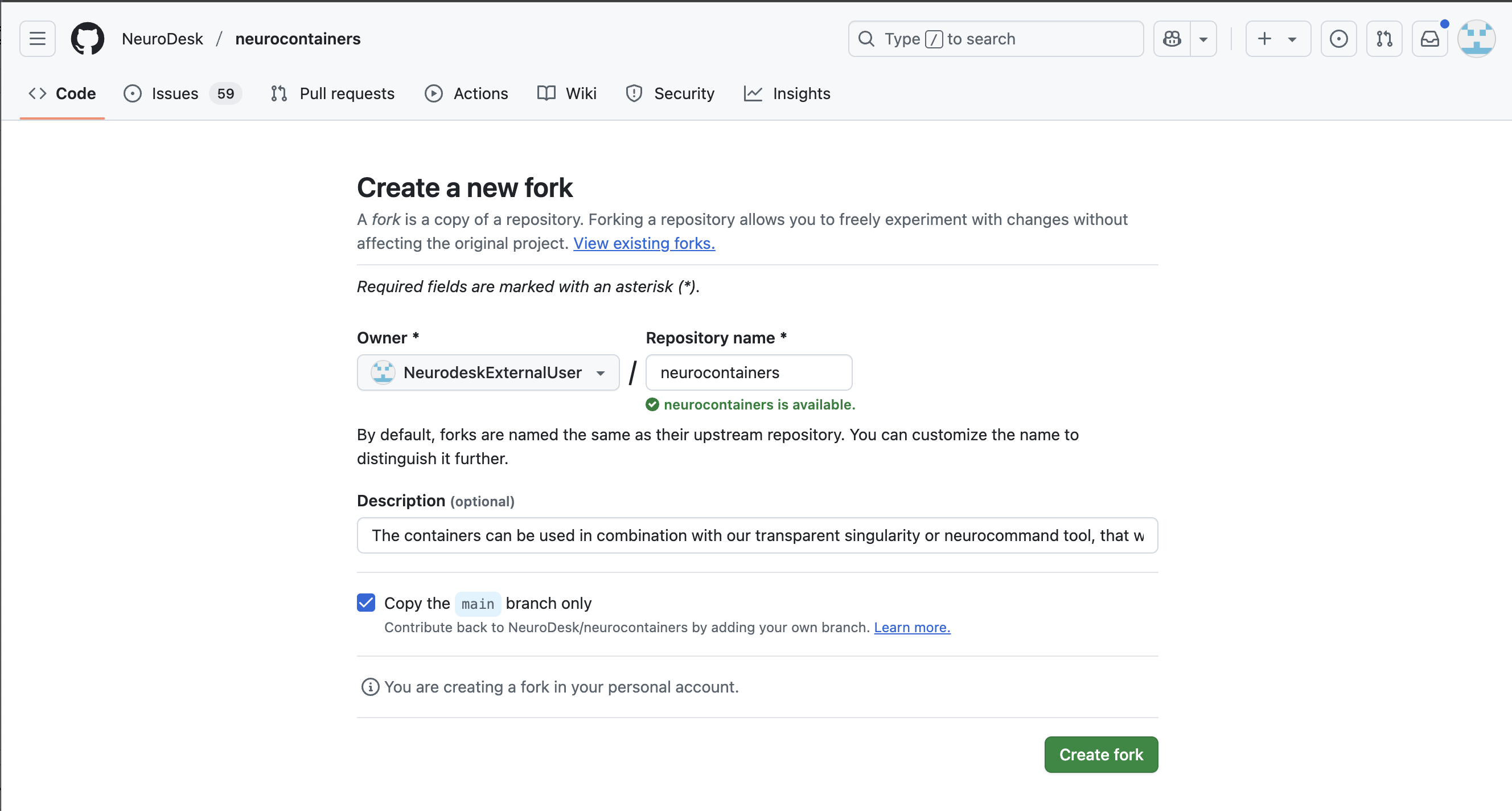

Naming your repository

You may decide to keep the same name for your new repository, or you may rename it.

Confirming you are on the forked version

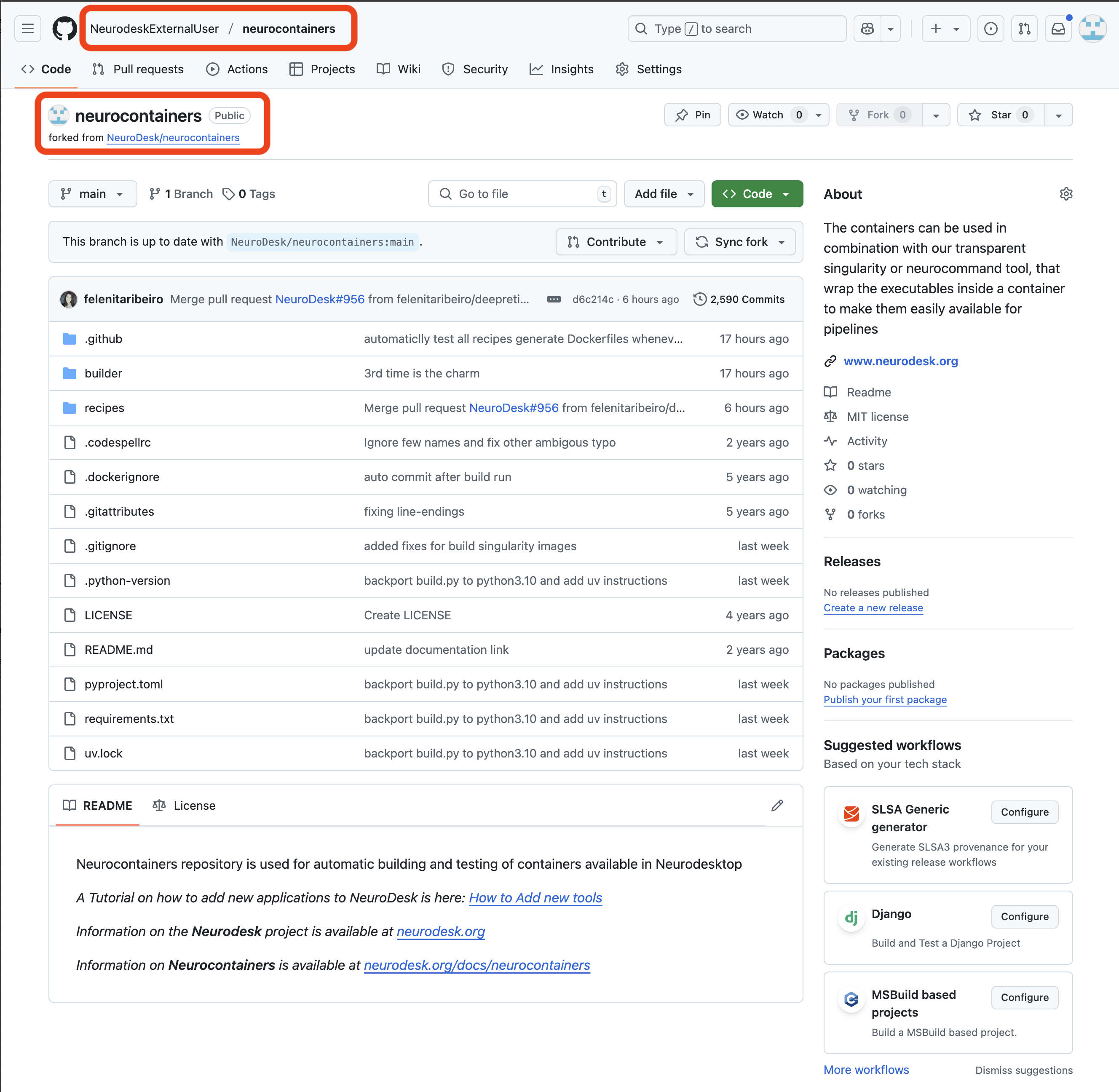

In the top left corner, you can see that you are in your forked repository of the neurocontainers repository.

Keeping your forked repository up to date

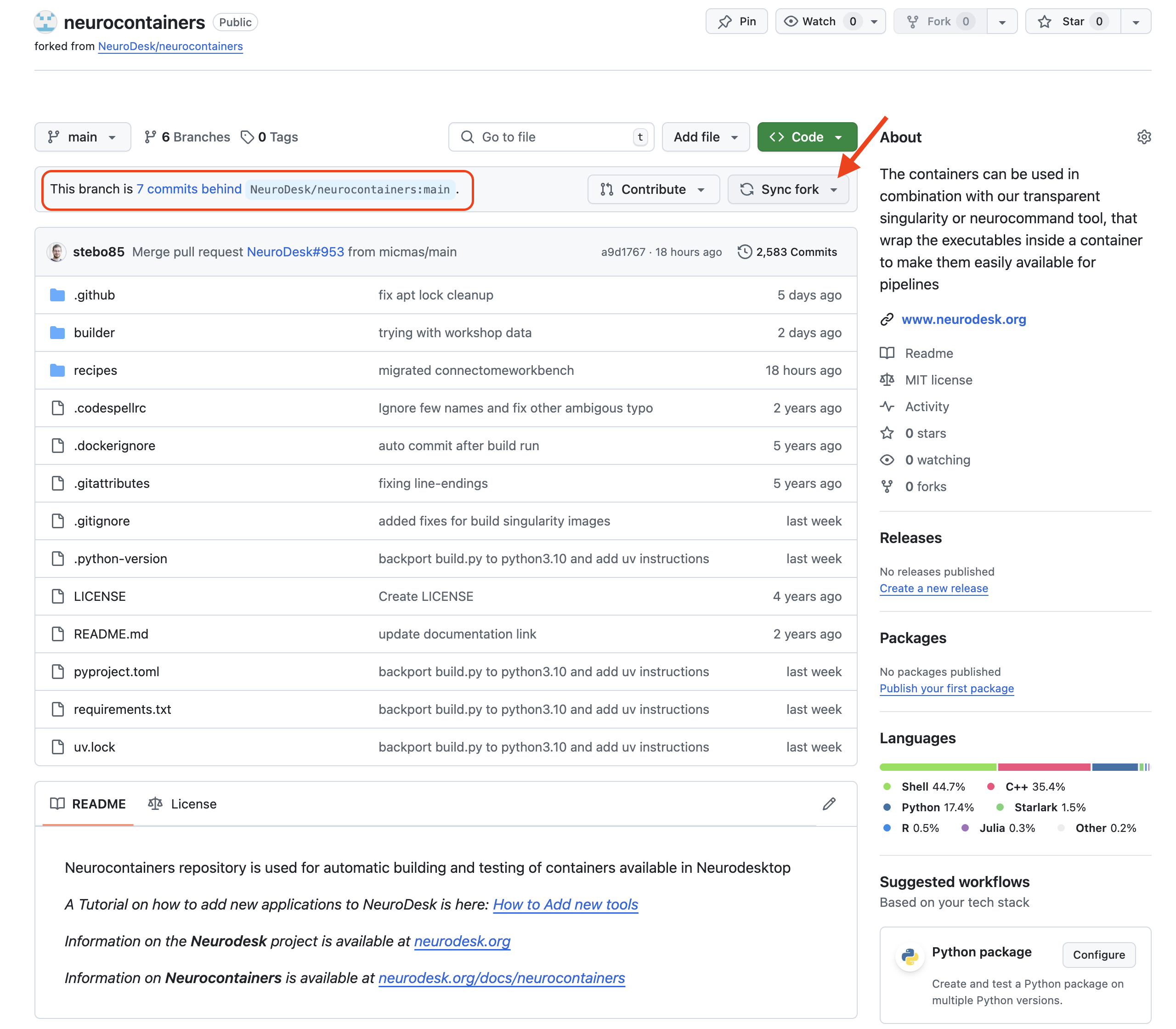

If changes are committed to the Neurodesk/neurocontainers repository, you will see a banner saying you are N commits behind. You may decide to sync the fork, which will update your repository, allowing you to have the most up-to-date files.

3. Create and edit a Codespace

Once this is done, you will want to start a Codespace by:

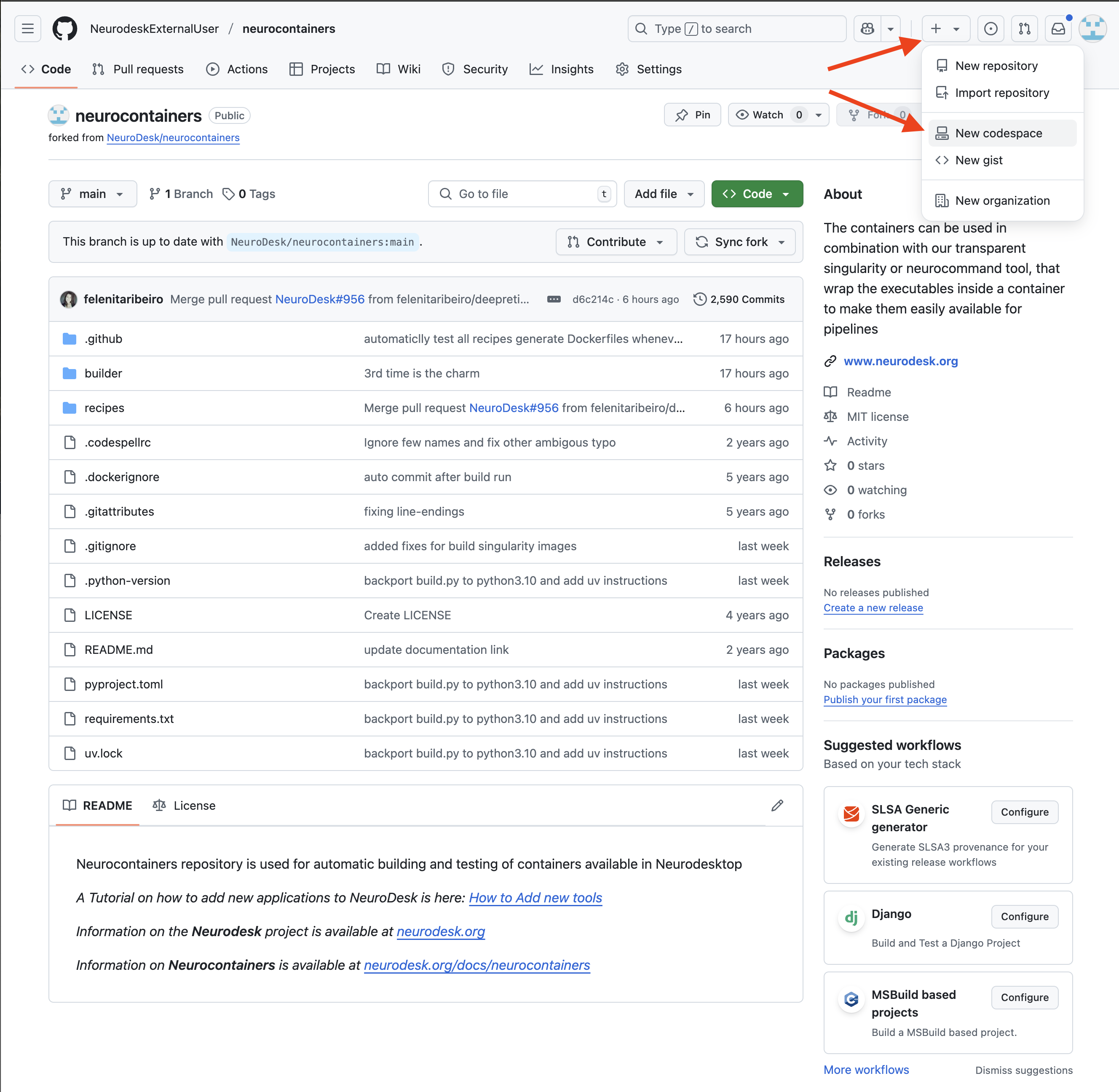

• Clicking the + (Create new…) button in the top right corner. (It’s a + sign button.)
• Selecting Codespaces, New codespace.

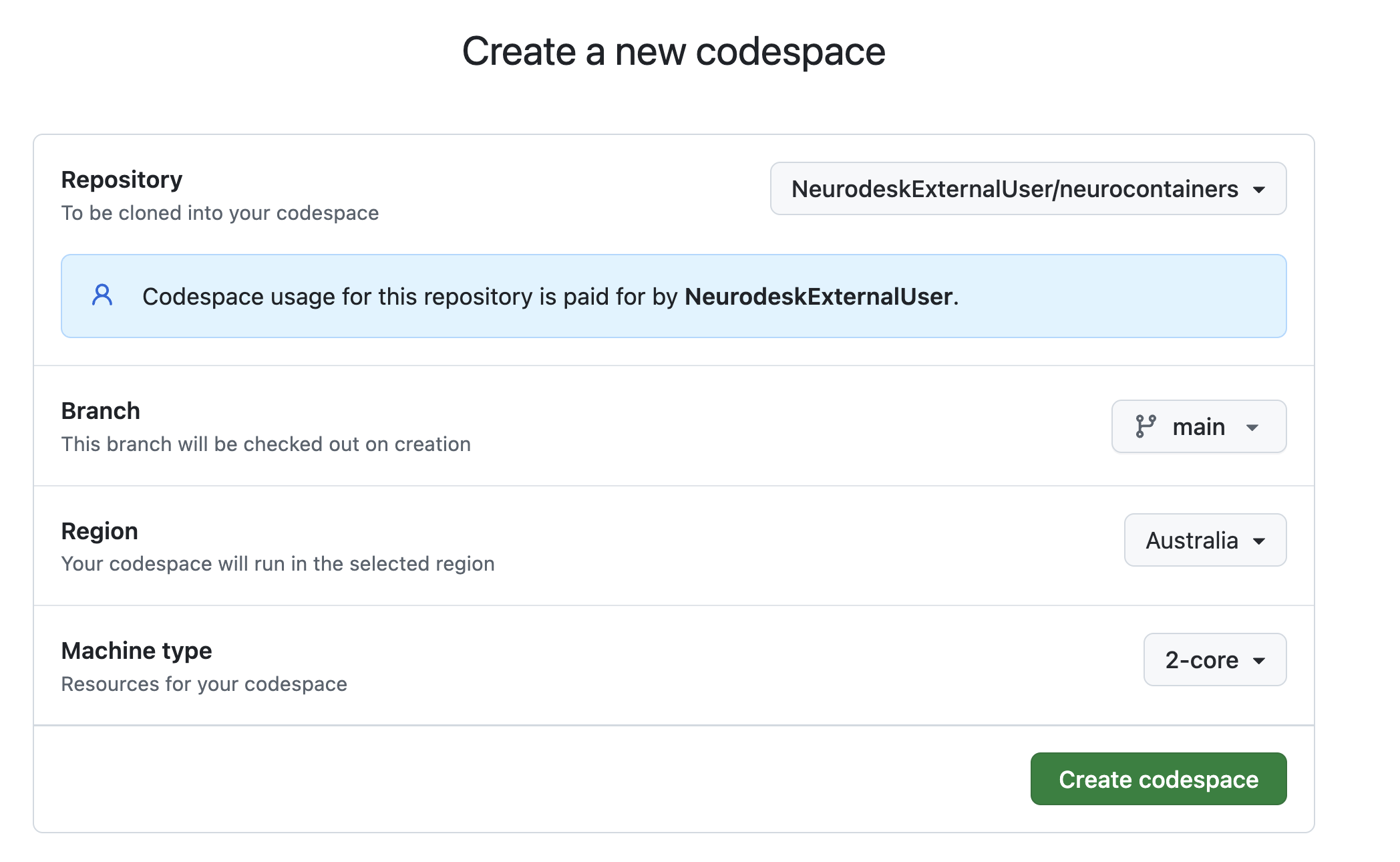

Configure your Codespace.

Note

Resource recommendation: Most Neurocontainers run smoothly on a 2-core machine. For containers with heavier computational demands, consider using a 4-core machine.

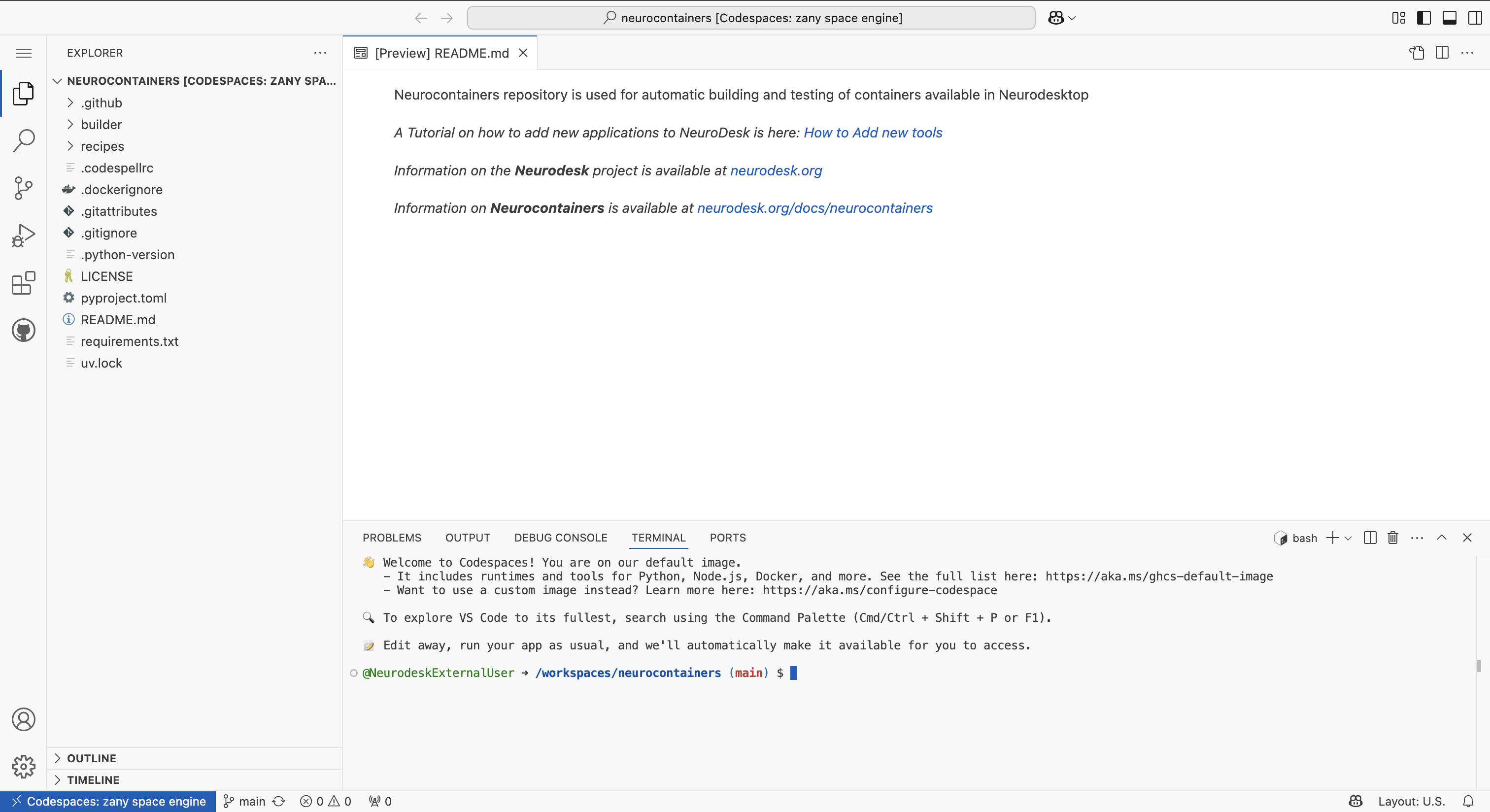

This opens an editable environment directly in your browser.

In the terminal, run the following lines to configure your Codespace environment.

python3 -m venv env
source env/bin/activate
pip install -r requirements.txt

This will install a series of packages to allow you to make changes to Neurocontainers.

YAML extension

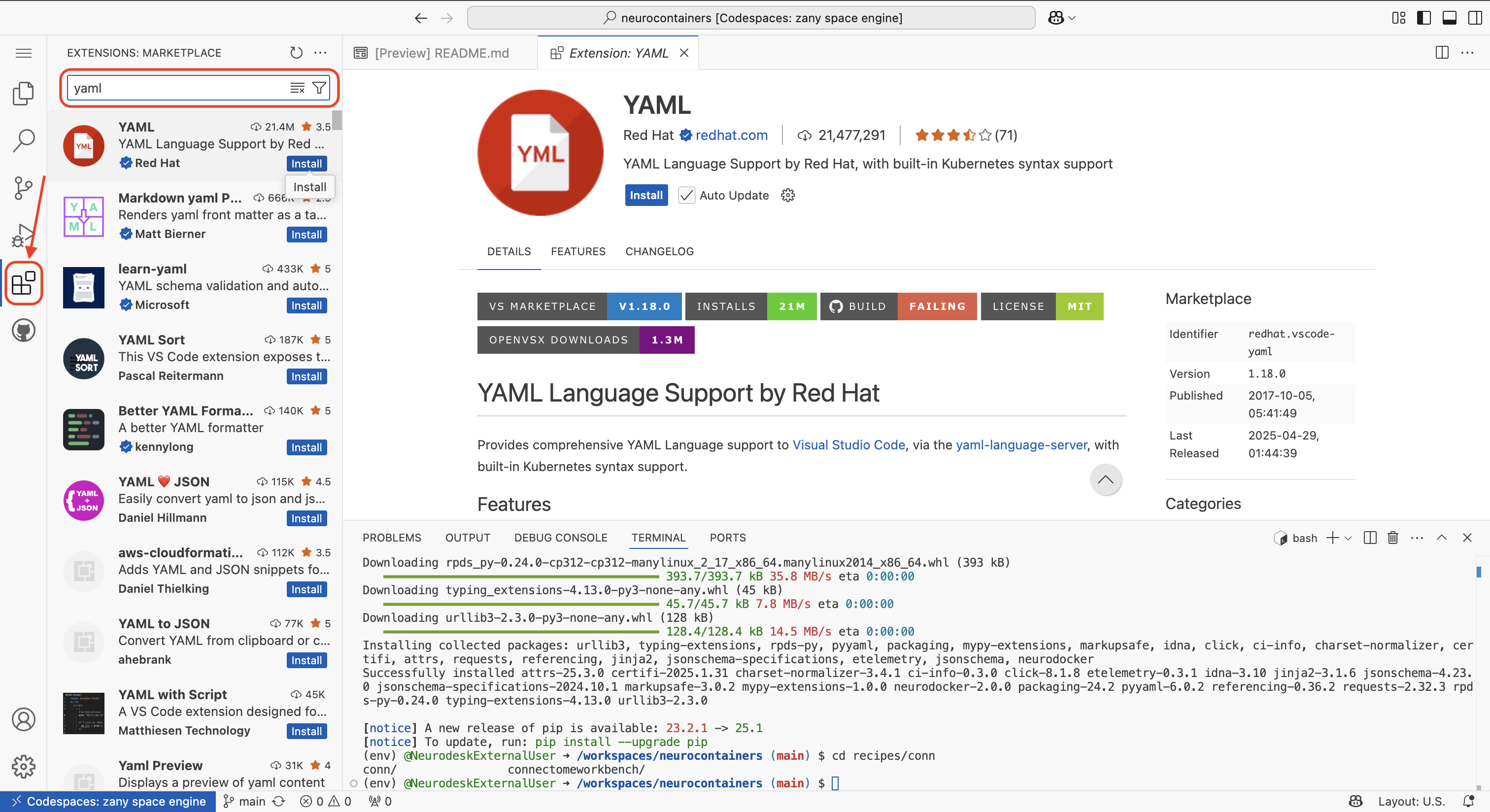

The first time you use a Codespace, you will also need to download the YAML extension by navigating to the Extensions tab using the icon on the left of your screen and searching for YAML. Click the install button.

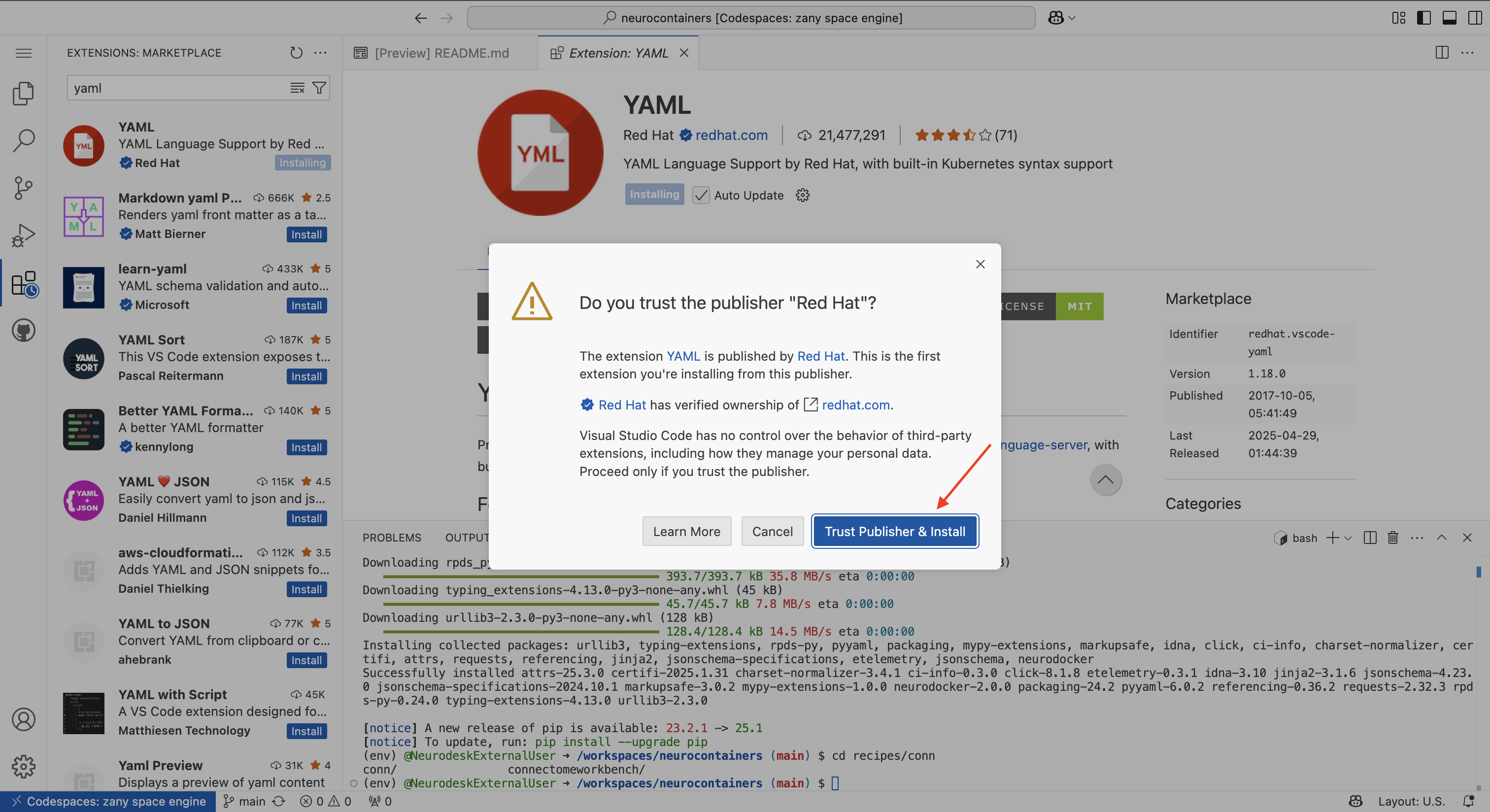

There will be a security pop-up where you will need to click “Trust Publisher & Install”.

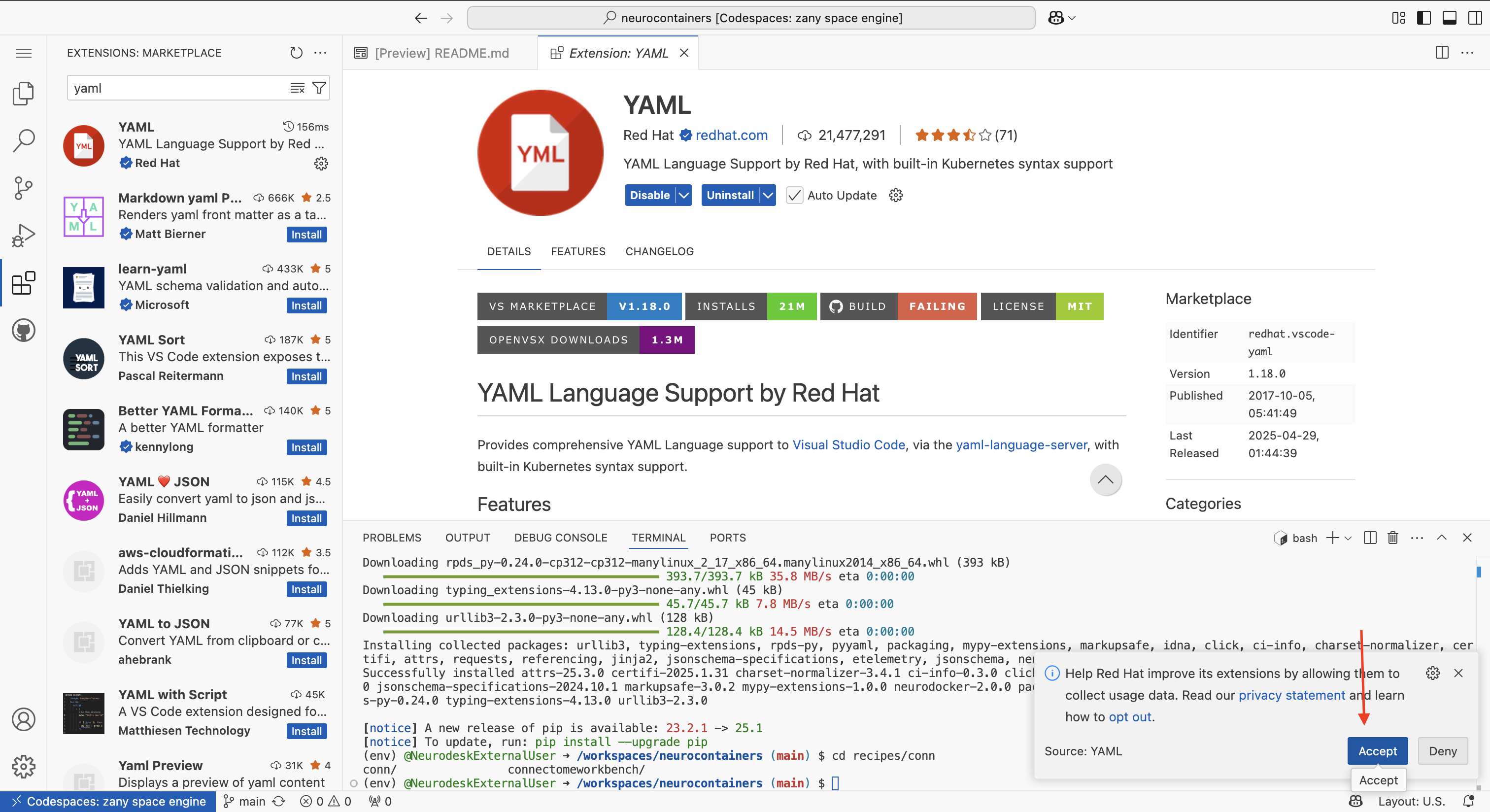

There will be another pop-up asking whether you allow the developers to collect data. You may click “Agree” or “Deny”.

4. Make changes to the desired container

Navigate back to the Explorer tab using the icon on the left of your screen.

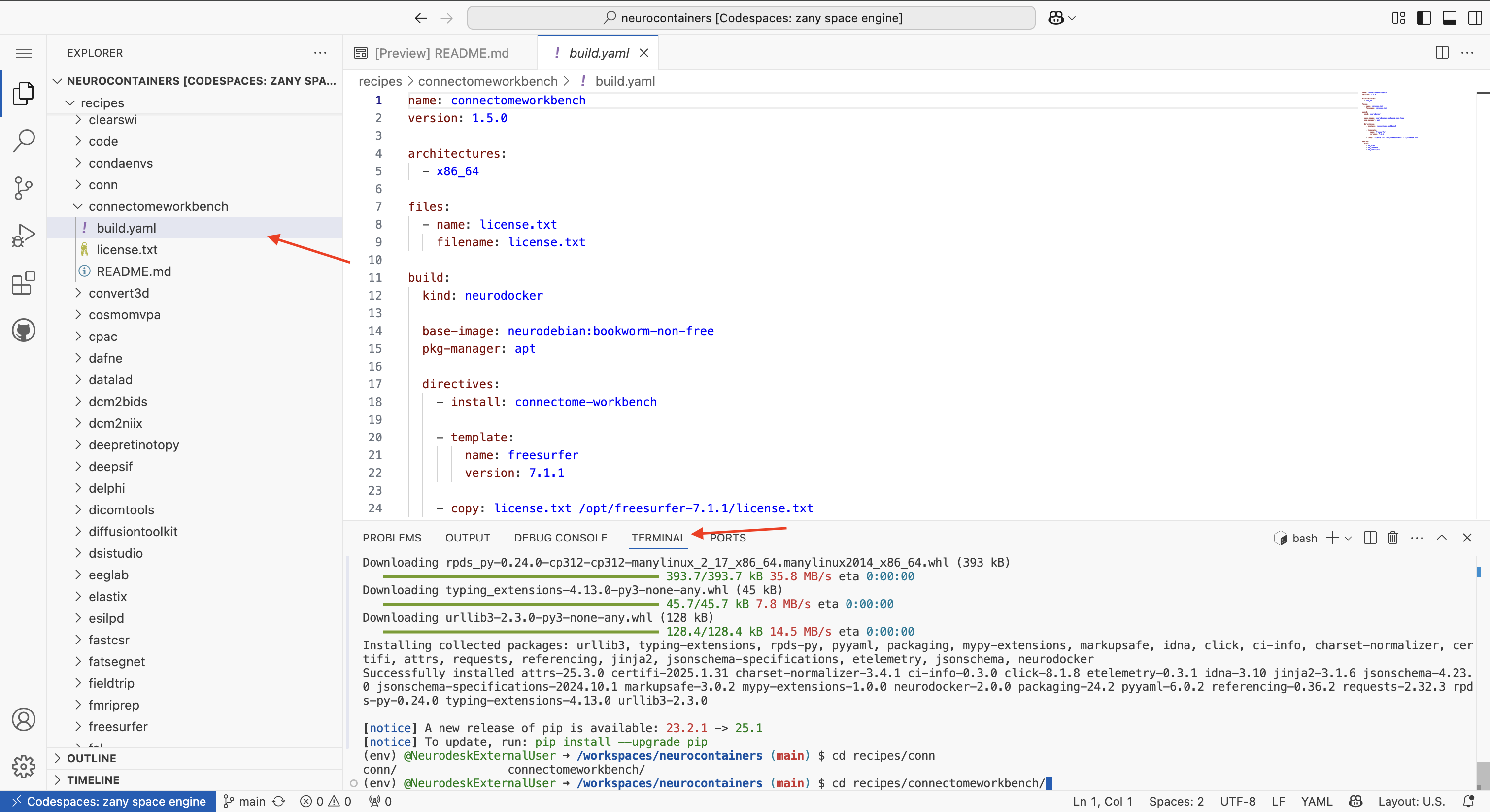

Using either the terminal at the bottom of your Codespace or the file browser on the left, navigate to the build.yaml file of the tool you wish to update.

Note

In this example, we are updating the Connectome Workbench tool.

Each tool has its own folder inside the recipes/ directory. Inside that folder you’ll find the build.yaml recipe plus any supporting files (license, README, test config):

• Directoryrecipes/

  • Directoryconnectomeworkbench/

    • build.yaml the recipe file to edit
    • license.txt
    • README.md
    • fulltest.yaml
  • Directoryants/

    • …
  • Directoryfsl/

    • …
  • …
• Directorybuilder/

  • build.py
• README.md

• Using the GUI (file browser): navigate manually to recipes/connectomeworkbench/.

• Using the terminal:

  cd recipes/connectomeworkbench/ # or whichever other neurocontainer you want to update

Editing the build.yaml

Open the build.yaml file. Make the necessary updates to:

• Software version numbers
• Dependencies
• Download links
• Build instructions (if needed)

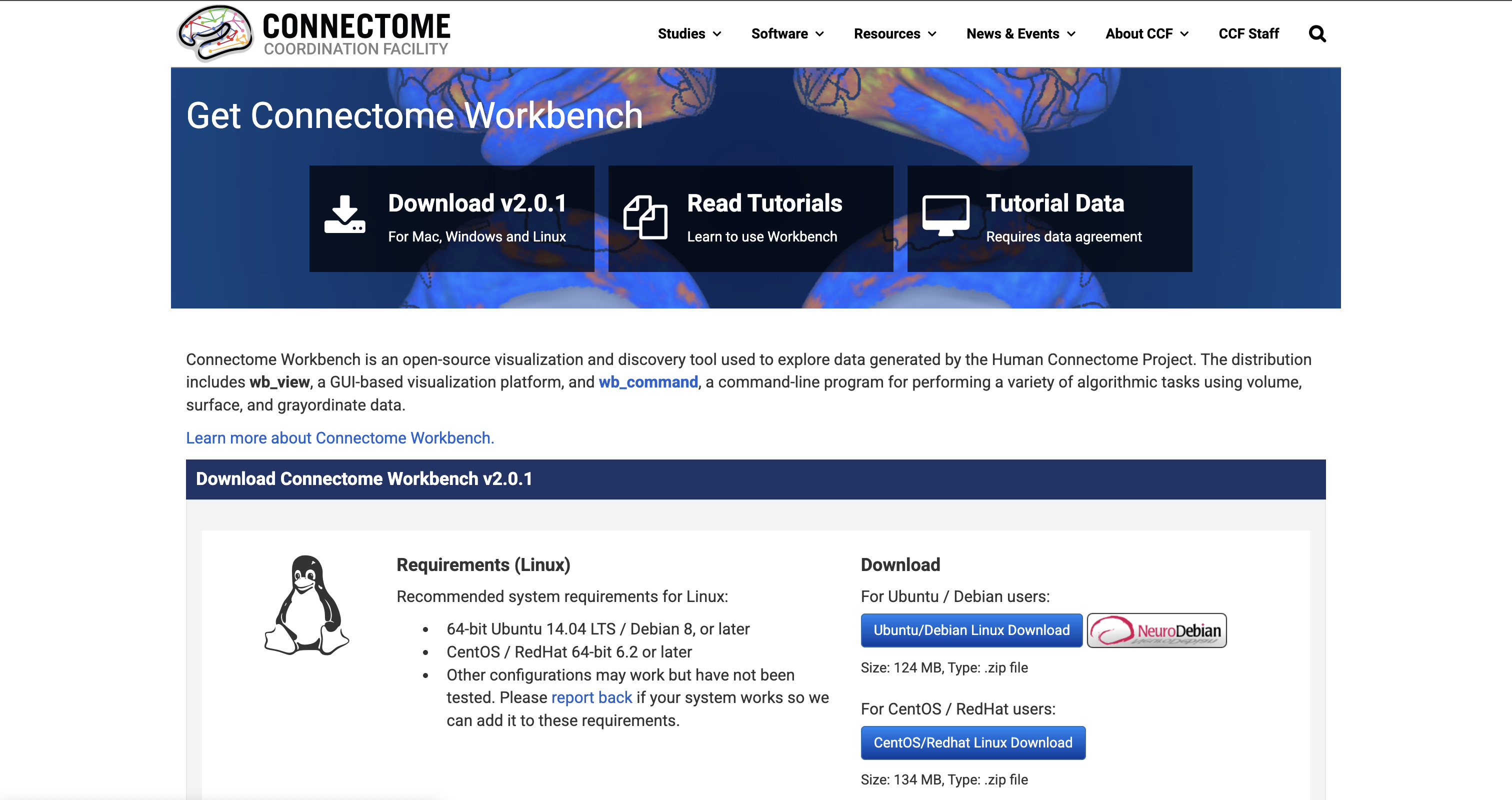

In this example, when we go to the Connectome Workbench website, we can see that the latest version available is Connectome Workbench v2.0.1.

To update the Neurocontainer version, change the version: to 2.0.1:

name: connectomeworkbench
version: 2.0.0
version: 2.0.1
architectures:
  - x86_64

If you are unsure how to structure the build.yaml, please refer to the examples provided in the Neurocontainers builder documentation.

Important

Keep your formatting strict. YAML files are indentation-sensitive. Use spaces, not tabs.

Once you have made your changes, save the file.

5. Validate your changes

Before committing, make sure your changes are valid.

In the terminal, run:

./builder/build.py generate connectomeworkbench # Replace connectomeworkbench with the name of the folder you updated

#This second step can take some time
./builder/build.py generate connectomeworkbench --recreate --build --test # Replace connectomeworkbench with the name of the folder you updated

This script will:

• Parse your build.yaml
• Check for syntax errors
• Show the build steps without actually building the full container

You will be able to see the progress for each of the building steps in the VS Code terminal panel at the bottom of your Codespace. The output looks something like this:

DataLayer: Build directory already exists.
(env) @neurodesksExternalUser:/workspaces/neurocontainers (main) $ ./builder/build.py generate connectomeworkbench --recreate --build --test

Building Docker 302.2s (15/26)
=> [build  7/22] RUN apt-get update -qq && apt-get install -y -q --no-install-recommends ca-certificates curl gnupg2 jq        4.1s
=> [build  8/22] RUN apt-get install -y --no-install-recommends bc connectome-workbench                                       182.3s
=> [build  9/22] WORKDIR /                                                                                                      0.0s
=> [build 10/22] RUN echo "Configuring container"                                                                               0.1s
=> [build 11/22] COPY license.txt /opt/connectome-workbench/license.txt                                                         0.0s
=> exporting to image                                                                                                          14.2s
=> => exporting layers                                                                                                         14.2s

If there are errors, correct them before proceeding.

Once you see Docker image built successfully at connectomeworkbench:2.0.1, you are ready to commit and push your changes.

6. Commit and push your changes

Once you have validated your build.yaml, it’s time to save and upload your work.

In the terminal:

git status

to check which files were changed.

Docker image built successfully at connectomeworkbench:2.0.1
Running tests...
No tests found.

(env) @neurodesksExternalUser:/workspaces/neurocontainers (main) $ git status
On branch main
Your branch is up to date with 'origin/main'.

Changes not staged for commit:
  (use "git add <file>..." to update what will be committed)
  (use "git restore <file>..." to discard changes in working directory)
        modified:   recipes/connectomeworkbench/build.yaml

no changes added to commit (use "git add" and/or "git commit -a")

If only this reflects the changes you’ve made, then stage, commit, and push your changes:

git add recipes/connectomeworkbench/build.yaml # Replace connectomeworkbench with the name of the folder you updated
git commit -m "Update connectomeworkbench container: updated version 2.0.1" # Adapt commit message
git push

Make sure your commit message is clear and descriptive, for example:

Update Connectome Workbench container to version 1.5.0. Adjust the commit message based on the updates you made to the Neurocontainer.

7. Create a pull request

After pushing your changes:

1. Go back to your forked repository on GitHub.

2. You should see a banner saying “This branch is X commits ahead of neurodesk/neurocontainers:main”.

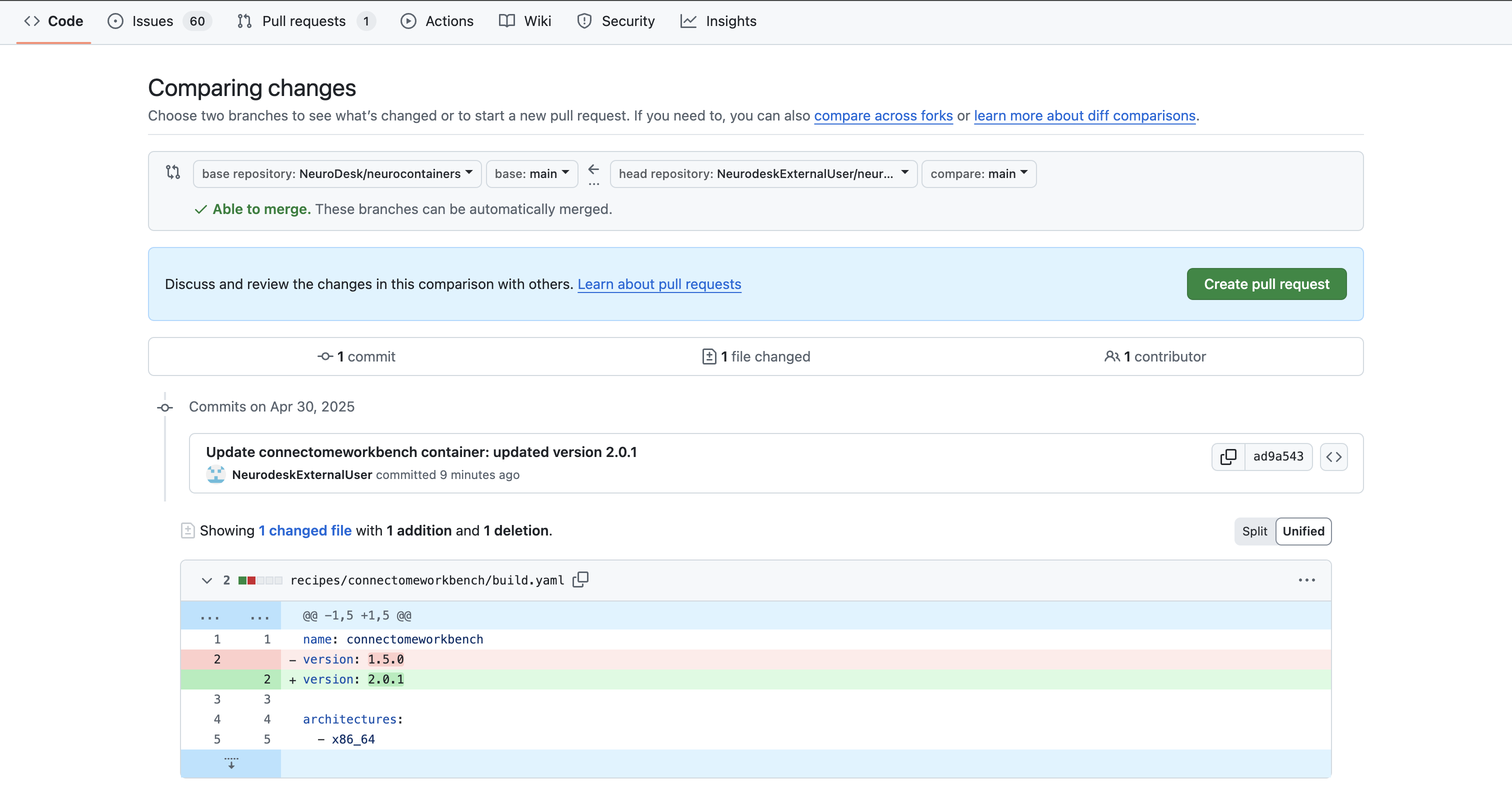

   You can either click on X commit ahead of to view the differences between your repository and the Neurodesk repository and then Create pull request.

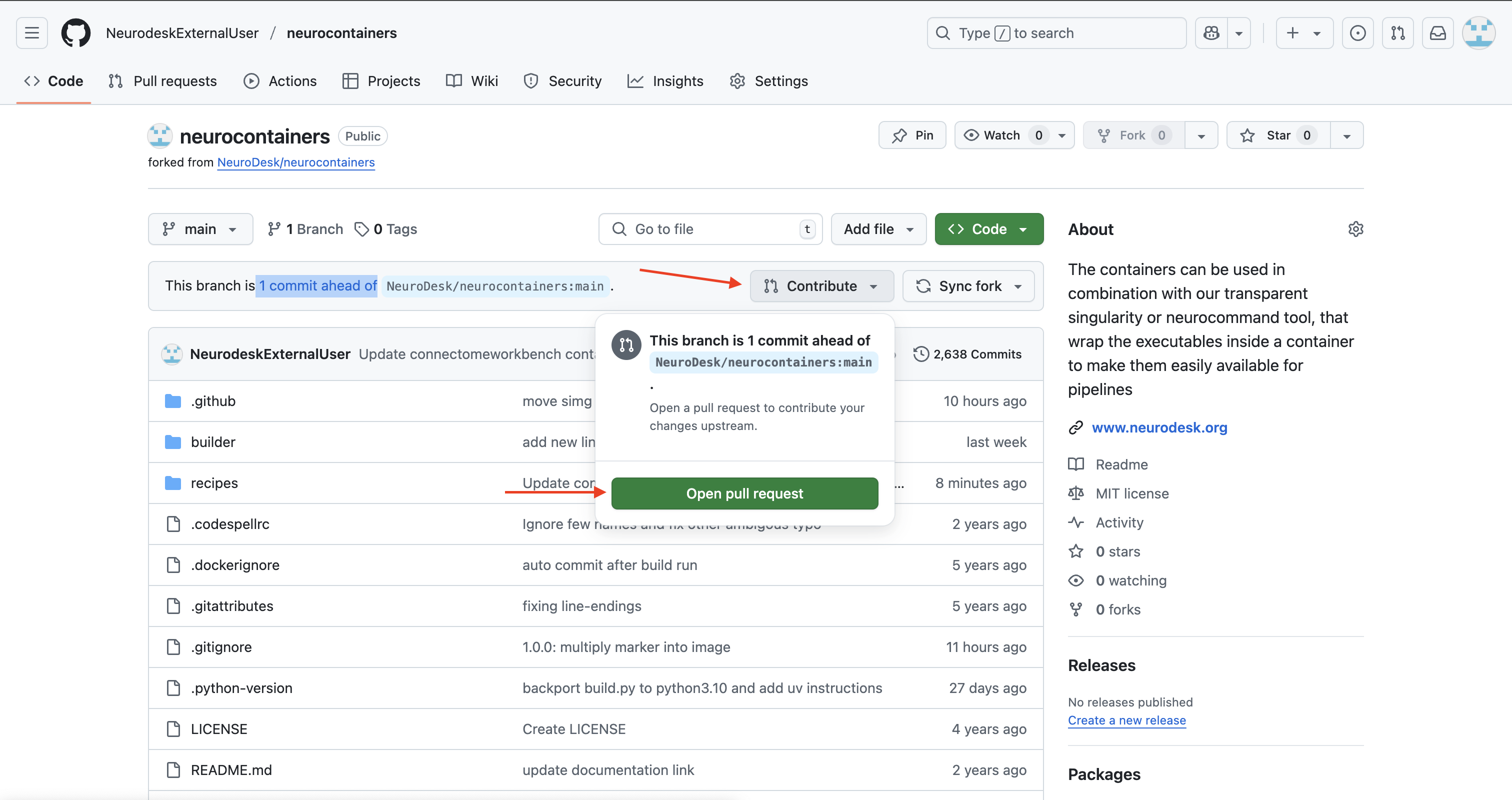

   Or click on Contribute, Open pull request.

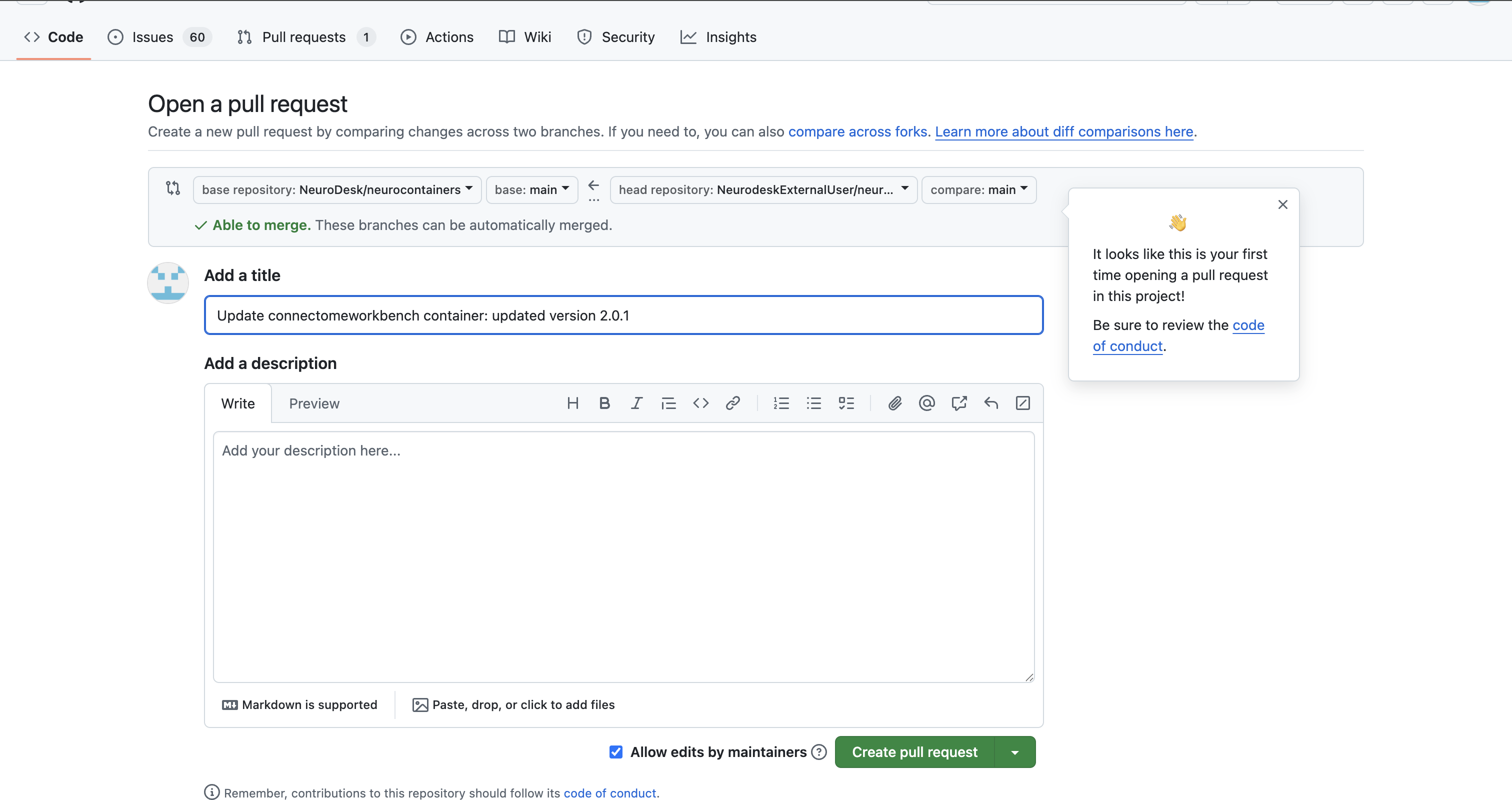

3. In the pull request:

   • Provide a clear title (e.g. “Update Connectome Workbench to v1.5.0”).
   • Write a brief description of what you changed (version bump, new dependencies, etc.).
   • Create the pull request.



Our Neurodesk team will review your proposed update, test the updated container to make sure it works, and merge your changes to Neurodesk if everything works correctly, allowing all users to benefit.

---

More detailed documentation can be found here: https://github.com/neurodesk/neurocontainers/tree/main/builder.

Need help?

If you have questions or would like feedback before submitting:

• Open a discussion

We appreciate your contribution to the Neurodesk community and reproducible science.
