Building an OpenRecon container

These instructions were tested on GitHub Codespaces, and we recommend Codespaces as a starting point.

For a local setup, install Docker, Python 3, and neurodocker. If neurodocker is not already on your PATH, add it:

python -m pip install neurodocker

# Check whether neurodocker is already on PATH:
which neurodocker

# If not, add the appropriate local install path.
# The path depends on your local setup.
export PATH=$PATH:~/.local/lib/python3.12/site-packages/bin
export PATH=$PATH:~/.local/bin

1. Add the Python MRD server to a Neurocontainers recipe

Add the OpenRecon macro to any recipe in the neurocontainers recipes directory:

- include: macros/openrecon/neurodocker.yaml

Make sure to adjust invertcontrast.py for your pipeline, or replace it with the files your pipeline needs from the Python MRD server.

Here is an example Neurocontainers recipe.

Then build the recipe:

sf-login openreconexample --architecture x86_64
# Or:
./builder/build.py generate openreconexample --recreate --build --login --architecture x86_64 --offline_mode true

2. Test the tool inside the container and then through the MRD server

Convert data to MRD test data

Note: enhanced DICOM and NIfTI-to-MRD conversion scripts are not yet merged into the main branch of python-ismrmrd-server.

In the meantime, get the scripts here:

• enhanceddicom2mrd.py
• nifti2mrd.py

Then add them to the image in build.yaml:

        - copy: enhanceddicom2mrd.py /opt/code/python-ismrmrd-server/enhanceddicom2mrd.py
        - copy: nifti2mrd.py /opt/code/python-ismrmrd-server/nifti2mrd.py

The directory that the container is built from is mounted automatically under /buildhostdirectory.

cd /opt/code/python-ismrmrd-server

# For legacy DICOM data:
python3 dicom2mrd.py -o input_data.h5 PATH_TO_YOUR_DICOM_FILES

# For enhanced DICOM data:
python /opt/code/python-ismrmrd-server/enhanceddicom2mrd.py -o /buildhostdirectory/input.h5 /buildhostdirectory/enhanced_dicom_data

# For converting NIfTI data to MRD:
python3 nifti2mrd.py -i /buildhostdirectory/input_Se1_Res0.8_0.8_Spac0.8.nii -o /buildhostdirectory/input_fromNIFTI.h5

Start the server and client, then test the application:

python3 /opt/code/python-ismrmrd-server/main.py -v -r -H=0.0.0.0 -p=9002 -s -S=/tmp/share/saved_data &
sleep 2
python3 /opt/code/python-ismrmrd-server/client.py -G dataset -o openrecon_output.h5 input_data.h5 -c openreconexample

3. Submit the container recipe to Neurocontainers

Submit the container recipe to the neurocontainers repository.

Here is an example: openreconexample.

The container is built automatically. If the build is successful, a pull request will be opened automatically for step 4.

4. Submit the container to OpenRecon

Submit the container to the openrecon repository.

Here is an example: openreconexample.

Detailed instructions for building on GitHub directly

Contributed by Kerrin Pine.

Prerequisites

You need a public GitHub account so the container can be submitted to the public Neurodesk OpenRecon repository and built.

Process

1. Fork neurodesk/neurocontainers to your personal GitHub account. In the upper-right corner, click Fork. If prompted, fork to your personal GitHub account.

2. After forking, go to your forked repository, for example github.com/YOUR_GITHUB_USERNAME/neurocontainers.

3. Create a new codespace. In your forked repository, click the green <> Code button, then select Create codespace on main.

4. In the terminal, run neurodocker --version. You should see a version such as 2.0.0.

5. Still in the terminal, run cd recipes, create a project directory with mkdir projectname, and copy the files from recipes/openreconexample into this new directory.

6. In build.yaml and test.yaml, change all occurrences of openreconexample to your own project name, and change openreconexample.py to projectname.py.

7. Follow the instructions in build.yaml to build.

8. Building drops you into the container itself. Follow the instructions in test.yaml to import your own test DICOM data into an .h5 file for testing. In Codespaces, you can drag data from another window into the folder.

9. Continue following the instructions in test.yaml to start the server and send demo data to it. For example:

   python3 /opt/code/python-ismrmrd-server/client.py \
     -G dataset \
     -o /buildhostdirectory/output.h5 \
     /buildhostdirectory/b0map.h5 \
     -c openreconexample

   You should see the expected number of images sent from the client to the server and returned by the server. The output in output.h5 can be viewed with the built-in H5Web viewer.

10. To check intermediate outputs for troubleshooting, open Extensions with Ctrl+Shift+X or the Extensions icon on the left, then install niivue for NIfTI image viewing in Codespaces.

11. Once the container has been thoroughly tested and you are happy with it, commit the new files and push them if you were not working on github.com. Do not include your demo data.

12. To build a container ready for the scanner, first open a pull request. For example: Add projectname container for OpenRecon MRD server. In the pull request description, include the neurodocker.yaml build instructions, the customised MRD Python scripts, and the Codespaces testing notes.

13. The second step is to write a recipe for neurodesk/openrecon. Because it is a separate repository, fork it, navigate to recipes, create a folder for your project, and add OpenReconLabel.json and params.sh with the version number. OpenReconLabel.json defines how the container description and UI options appear on the scanner. Then open a pull request. Updating the version number will trigger the container to be rebuilt, and instructions for downloading and installing the container will appear as an issue in that repository.

Tips, tricks, and troubleshooting for OpenRecon

Installing and testing a new OpenRecon package

Make sure that no protocol is open, because an open protocol can prevent installation of a new package.

Copy the OpenRecon zip file into C:\Program Files\Siemens\Numaris\OperationalManagement\FileTransfer\incoming.

Wait for the file to disappear.

Check whether it is being installed by watching C:\ProgramData\Siemens\Numaris\log\syngo.MR.HostInfra.OpenRecon.Watcher.

It should first create a 0 KB text file with the container name and version.

The text file then fills to about 100-200 KB.

Once the log file is written, you can open a protocol and check whether the package is available.

Run the sequence with OpenRecon enabled and check for errors in the log viewer at C:\ProgramData\Siemens\Numaris\log\OpenRecon.utr.

Sent image values must fit within a 4096-value range

OpenRecon can send a maximum integer range of 4096 values back to the scanner.

If the returned images exceed that range, the values can wrap around instead of clipping. The symptom is that the sent images show repeating integer wraps and can look a bit like phase images.

Scale or clamp derived image data into the scanner-safe range before sending it from the MRD server.

Choice parameters need a non-empty default

If a choice parameter in OpenReconLabel.json has an empty default value, the OpenRecon package validates OK and can still install successfully, but the tool will not be selectable in the sequence tab (it shows in the list, but when clicking on it nothing happens).

For example, this can fail because "default": "" does not match any entry in values:

{
  "id": "metricsregion",
  "label": { "en": "Metrics Region" },
  "type": "choice",
  "values": [
    {
      "id": "wholebody",
      "name": { "en": "wholebody" }
    },
    {
      "id": "abdomen",
      "name": { "en": "abdomen" }
    },
    {
      "id": "pelvis",
      "name": { "en": "pelvis" }
    },
    {
      "id": "thigh",
      "name": { "en": "thigh" }
    },
    {
      "id": "leg",
      "name": { "en": "leg" }
    }
  ],
  "default": "",
  "information": { "en": "Region passed to MuscleMap metrics" }
}

Set the default to one of the available values IDs instead:

{
  "id": "metricsregion",
  "label": { "en": "Metrics Region" },
  "type": "choice",
  "values": [
    {
      "id": "wholebody",
      "name": { "en": "wholebody" }
    },
    {
      "id": "abdomen",
      "name": { "en": "abdomen" }
    },
    {
      "id": "pelvis",
      "name": { "en": "pelvis" }
    },
    {
      "id": "thigh",
      "name": { "en": "thigh" }
    },
    {
      "id": "leg",
      "name": { "en": "leg" }
    }
  ],
  "default": "wholebody",
  "information": { "en": "Region passed to MuscleMap metrics" }
}

Do not use Prio Recon with OpenRecon

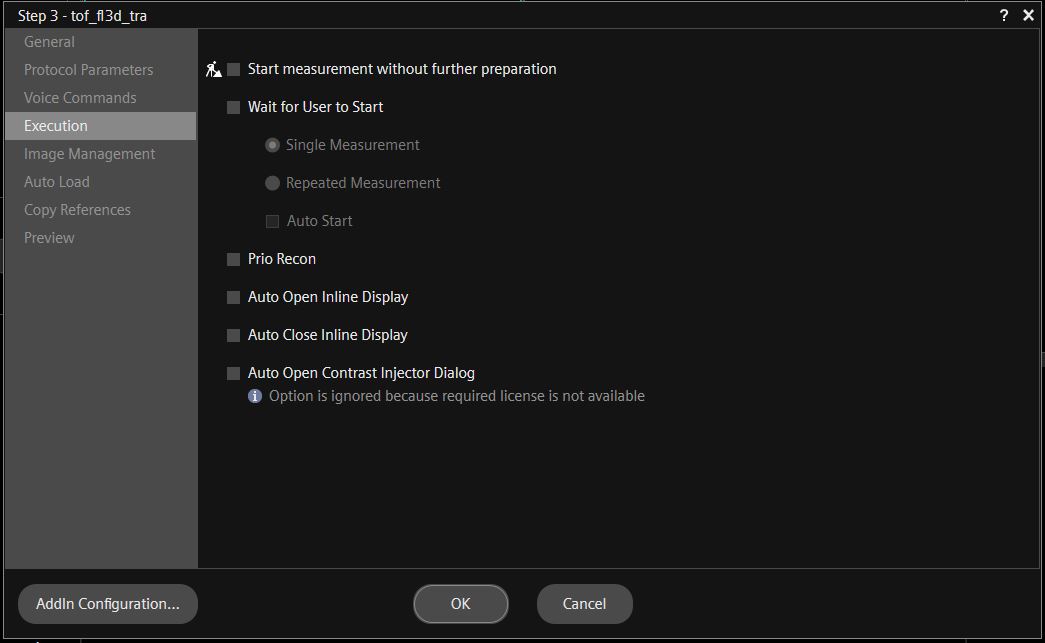

This option has to be disabled in an OpenRecon sequence:

Right-click Sequence in the Scan Queue, then select Edit Properties (Alt+Enter) and Execution.

CUDA version

Make sure that you install the correct CUDA version in the container and that it does not get overwritten by a pip install. OpenRecon only supports CUDA 11.x.

Always double-check in the container with:

# Check that the CUDA version is valid for MARS; it must be CUDA 11.x.
python -c "import torch; print(torch.version.cuda)"

Versioning of containers

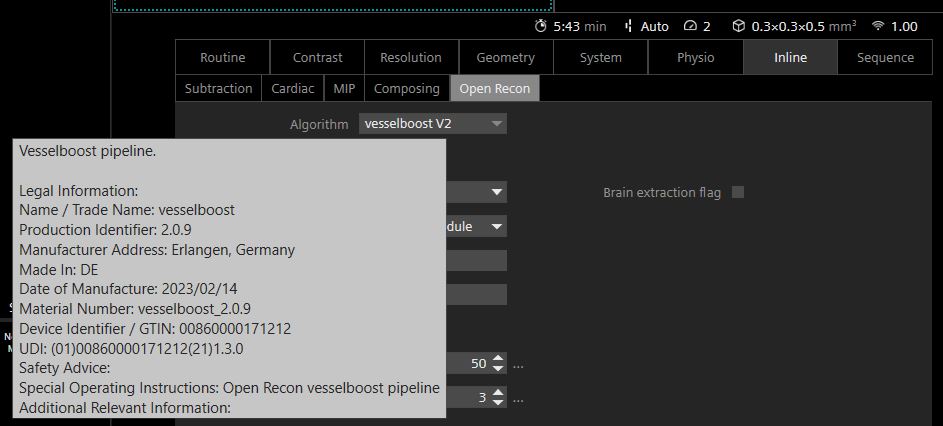

OpenRecon requires container versions. For example, on the scanner, version 1.2.3 only shows the major version in the selection box, but hovering over the name shows the full version:

OpenRecon will not install an update to a container with the same version.

High-performance computing licence side effects

For OpenRecon to work, the N_High_End_Computing licence must be active on the scanner.

Activating this licence takes memory away from the main ICE recon system, so normal recons might run out of memory sooner. If you need this memory back, you can temporarily disable this licence and OpenRecon.

Turn the licence off by commenting it out. Add # in front of the relevant lines in C:\Program Files\Siemens\Numaris\bin\Common\Licensing\license.dat.

Restart the whole system. Restarting the workspace is not enough.

Cleaning up packages on the scanner

After installing a few different versions, the container library can get full.

Download the tool wip_OpenRecon_PackageRemover_Tool.exe from the Siemens magnetom.net forum. Make sure to follow the installation instructions. Then run wip_OpenRecon_PackageRemover_Tool.exe -p to clean up old versions.

For the deletion to work (and for the tool to see your OpenRecon package), the package needs to be labelled as Research. It will not touch OpenRecon tools labelled as Product.

So check that you have this in your OpenReconLabel.json file:

    "content_qualification_type": "RESEARCH"
